How to check washer pressure switch

Begin by disconnecting the power supply to your device. Safety is paramount, and ensuring no electricity is flowing will prevent any accidents during inspection.

Next, locate the component responsible for monitoring water levels within the system. It typically resembles a small cylindrical unit attached to the water supply tube. Carefully examine it for visible damage or wear. Cracks or humidity accumulation around this device may indicate failure.

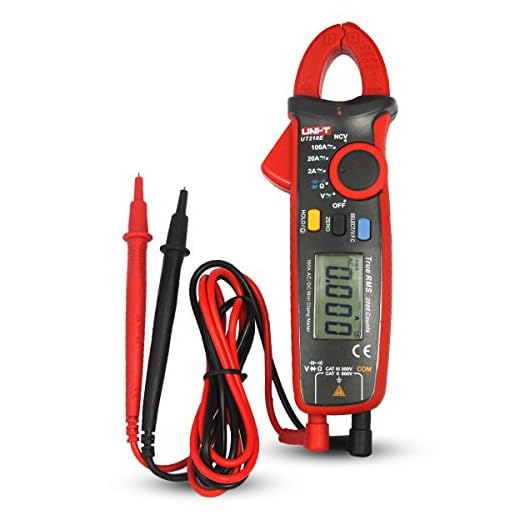

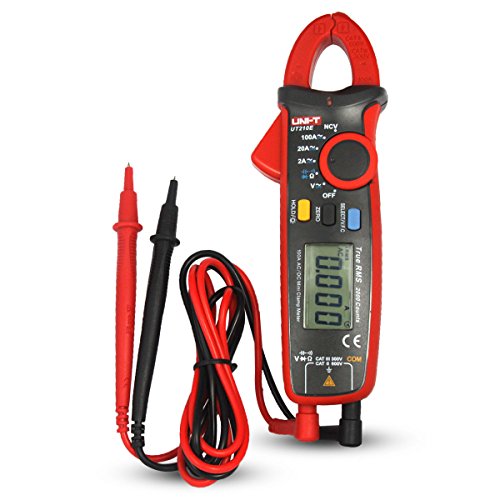

Utilise a multimeter set to resistance mode to verify functionality. Detach the wires connected to the monitoring unit. Attach the multimeter probes to the terminals, ensuring a secure connection. A range of 0 to 1 ohm indicates that the mechanism is operational, while an infinite reading suggests that the unit is faulty and requires replacement.

Lastly, inspect the surrounding hoses for blockages or leaks that may affect the functionality of the sensor. Any obstructions could lead to inaccurate readings and diminish the performance of your cleaning equipment. Regular maintenance will save you time and money in the long run.

Identifying the Pressure Regulator Location

The regulator is typically situated on the unit’s rear or side panel. Begin by examining the area directly adjacent to the water inlet. This is often where the component resides, connected to the hose or pipe leading to the pump.

Remove any access panels or covers if necessary. A schematic or diagram within the user manual can provide clearer guidance on the precise location. If available, use this as a reference.

For many models, the regulator may have a small port or tubing extending from it, indicating its position. Carefully tracing the water flow path can also lead you to the regulator. After identifying it, ensure to keep it clean and free of debris, as this can affect performance.

In some cases, the regulator could be located internally, necessitating further disassembly. If this is the case, take precautions to avoid damaging any components during removal.

Disconnecting the power supply safely

Prioritise your safety by disconnecting the appliance from its power source before any inspections. Follow these steps meticulously:

Steps to Disconnect Power

1. Locate the main power cable, ensuring it’s accessible.
2. Switch off the circuit breaker or unplug the unit from the electrical outlet.
3. Verify no power is flowing by attempting to turn on the machine; the absence of any response confirms disconnection.

Ensure that you are using insulated tools during any further work to minimise the risk of electric shock.

Identifying Potential Hazards

Before beginning, inspect the area for any potential hazards, such as wet floors or damp conditions that may increase the risk of electrical accidents. Avoid working in poorly lit environments.

Following these precautions will help ensure a safe work environment as you proceed with your assessment of the machinery.

Accessing the Internal Components

To effectively reach the inner sections of your appliance, gather the necessary tools, including a screwdriver set and a multimeter. Begin by placing the unit on a stable surface to prevent any accidents while disassembling.

Removing the Outer Housing

Follow these steps to safely take off the outer shell:

1. Locate the screws securing the housing, which are typically found on the rear or underside. Remove all screws carefully.
2. Gently pry apart the casing. If there are clips or latches, use a plastic opening tool to avoid damaging the surface.
3. Once you’ve loosened the housing, carefully pull it away to expose the internal mechanisms.

Identifying Key Components

After accessing the internals, locate the components you need to examine:

• Check for any visible signs of wear or damage, particularly around connectors and wires.
• Trace the tubing connected to the inlet and outlet to ensure they’re not clogged or fractured.
• Familiarise yourself with the location of sensors and other critical pieces that may require your attention.

Proceed with caution, avoiding any abrupt movements that could lead to further complications. Make a note of how components are aligned to ensure proper reassembly later.

Inspecting the Pressure Activation Device for Damage

Begin by visually examining the activation device for any signs of physical harm. Look for cracks, corrosion, or other irregularities. Any visible damage could impede functionality.

Next, inspect the electrical connections at both the device and the wiring harness ends. Ensure that there are no frayed wires or loose terminals that could disrupt the signal. A secure connection is vital for proper operation.

Check for any signs of moisture ingress. If the unit shows evidence of water damage, this is a clear indicator of failure that needs addressing. Look at the seals and gaskets as they can wear over time, leading to leaks.

To further evaluate the integrity, gently press the switch mechanism. It should move smoothly without resistance. If it’s stuck or difficult to manipulate, replacement is advisable.

Utilise a multimeter to test continuity across the terminals. A successful reading indicates that the device is functioning correctly. Lack of continuity signifies a defect that may require professional intervention.

After completing the inspection, consider documenting any findings. This information can be helpful if further repairs or replacements are necessary, ensuring a holistic approach to your cleaning device’s maintenance.

Testing the Pressure Sensor with a Multimeter

Using a multimeter to evaluate the functionality of the sensor is straightforward. First, adjust the multimeter to the resistance (ohm) setting. Then, proceed with the following steps:

1. Locate the two terminals on the sensor. These are typically attached to wires leading to the control board.
2. Disconnect the wires from the terminals. This prevents any readings from being affected by the machine’s circuitry.
3. Place the multimeter probes on each terminal. Ensure a firm connection for accurate readings.
4. Observe the multimeter display. A functioning sensor should show a specific resistance value, usually within a predetermined range outlined in the product manual.
5. If the reading is significantly higher or lower than expected, the sensor is likely defective and requires replacement.

Further Evaluation of the Sensor

If the initial test indicates a problem, conduct an airflow test. This involves:

• Reconnecting the wires to the terminals.
• Applying air pressure gently through the sensor’s inlet using a hand pump.
• Monitoring the multimeter for changes in resistance while applying pressure.

A well-functioning sensor should reflect changing resistance as air pressure is applied. If there are no changes, replacement is essential.

Understanding Pressure Switch Readings

To interpret the measurements taken from the pressure controller, ensure the device is powered on and operational. The readings should align with the manufacturer’s specifications found in the user manual. Usually, a normal range for the readings falls between 20 to 30 psi during operation.

When assessing the figures, a reading below this range may indicate a malfunction, such as a clog in the inlet or a leak in the system. Conversely, if the readings exceed 30 psi significantly, this may point to an overactive sensor or internal blockage affecting the pressure regulation process.

Interpreting Low Readings

If the values are consistently low, I recommend inspecting the hoses for any kinks or obstructions. Additionally, check the inlet filter for debris that could hinder water flow. Any visible damage to hoses can also lead to poor pressure readings.

Interpreting High Readings

In cases of high readings, examine the entire flow path for blockages. A malfunctioning valve or an issue within the pump may also produce excessive readings. Regular maintenance and flushing of the system can help avoid such problems, ensuring accurate and reliable performance measurements.

Reinstalling the pressure switch correctly

Align the component precisely with the mounting bracket. Ensure that any gaskets or seals are intact and positioned properly to prevent leaks. Use a torque wrench to tighten screws or bolts to the manufacturer’s specified torque settings. This guarantees a snug fit without risking damage to the component or surrounding materials.

Reconnect the hose connections firmly, ensuring that there are no kinks or obstructions. Secure any clamps that hold hoses in place, inspecting for wear and replacing them if necessary. This step protects against air leaks which can lead to malfunction.

After securing the assembly, reconnect any electrical connectors. Ensure that they fit tightly without any corrosion or dirt interfering with the connection. If necessary, apply a small amount of dielectric grease to prevent moisture intrusion and ensure a good electrical connection.

Finally, restore the power supply and run a test cycle. Monitor the functionality to confirm that the component operates as expected. Listen for any unusual noises or irregularities that may indicate improper installation, and address issues immediately.

Troubleshooting common pressure switch issues

If you notice irregular behaviour during operation, start by checking for leaks in the tubing connected to the sensor. A pinhole or crack can lead to pressure discrepancies. Ensure all connections are airtight, as this can dramatically affect performance.

Identifying erratic readings

If the gauge fluctuates unexpectedly, inspect the electrical connections to the device. Corrosion or loose wires can cause inconsistent signals, leading to inaccurate measurements. Clean any corrosion with a suitable contact cleaner and secure all connections firmly.

System not responding

For instances where activation fails, examine the compliance of the fixture’s diaphragm. A stuck diaphragm may prevent proper engagement, so gently removing the component for inspection might reveal blockages or wear. If you find damage, replacing the entire mechanism is recommended.

Look out for any abnormal noises during operation. Unusual sounds often indicate internal wear or misalignment within the unit. If alterations are needed, ensure that all components are aligned correctly and reassemble with attention to fit.

Finally, if after troubleshooting the device still doesn’t function correctly, consider consulting the manufacturer’s guide for specific diagnostic procedures tailored to your model. Resetting the system as indicated can sometimes restore proper functionality without extensive repairs.
